Connectors

Circular connectors are one of the core key products of Gino Technology, suitable for different electrical equipment and various automation industries. The products cover various specifications and sizes from M5 to M40, including straight head/elbow, pre cast/on-site assembly, cable end/panel end/PCB board load, and other forms. Jinnuo Technology's circular connectors have the characteristics of compact structure, stable performance, and easy installation, and can be used for application solutions such as power supply, communication data, control signals, etc. At the same time, thousands of cable options can be provided for matching.

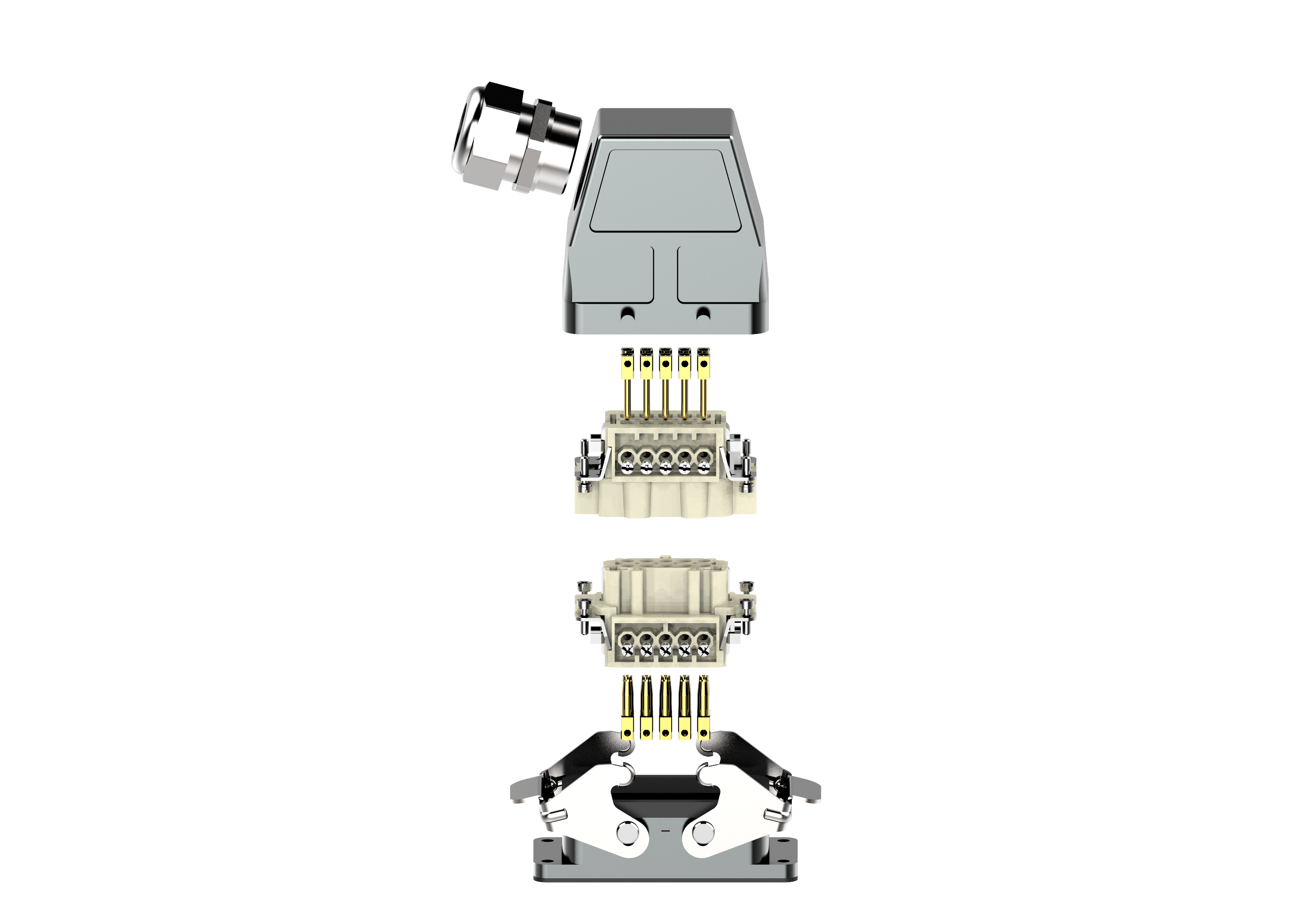

Heavy duty connectors are one of Gino Technology's most distinctive products, with excellent protection capabilities, a wide range of voltage/current specifications, and a rich and flexible product combination, particularly suitable for harsh environments such as vibration, dust, temperature challenges, and mechanical shocks. This product has a solid aluminum or thermoplastic shield shell, with protection levels ranging from IP65 to IP68. The product complies with EN/IEC 61984 standards, with a contact conductor current carrying capacity ranging from 5A to 650A and a maximum of 300 electric shocks. It provides a variety of stable and reliable choices for the transmission of power, data, and signals.

The MIL-DTL-5015 series connectors from Jinuo Technology comply with the US military standard MIL-C-5015 (corresponding to the national military standard GJB600) and are the most widely used products in military standard connectors. This product adopts a high-strength aluminum alloy shell, threaded or bayonet type quick connection, distinguished by multiple key slots and multiple key positions, effectively preventing accidental insertion. It has a synthetic rubber core that is resistant to high temperature and high pressure inside, and can choose the wiring process for welding or crimping. The design is simple and practical, cost-effective, easy to operate, and reliable in connection. It is widely used in various industries such as industrial machinery and equipment, military equipment, ship equipment, automobile manufacturing, instrumentation, and servo motors.

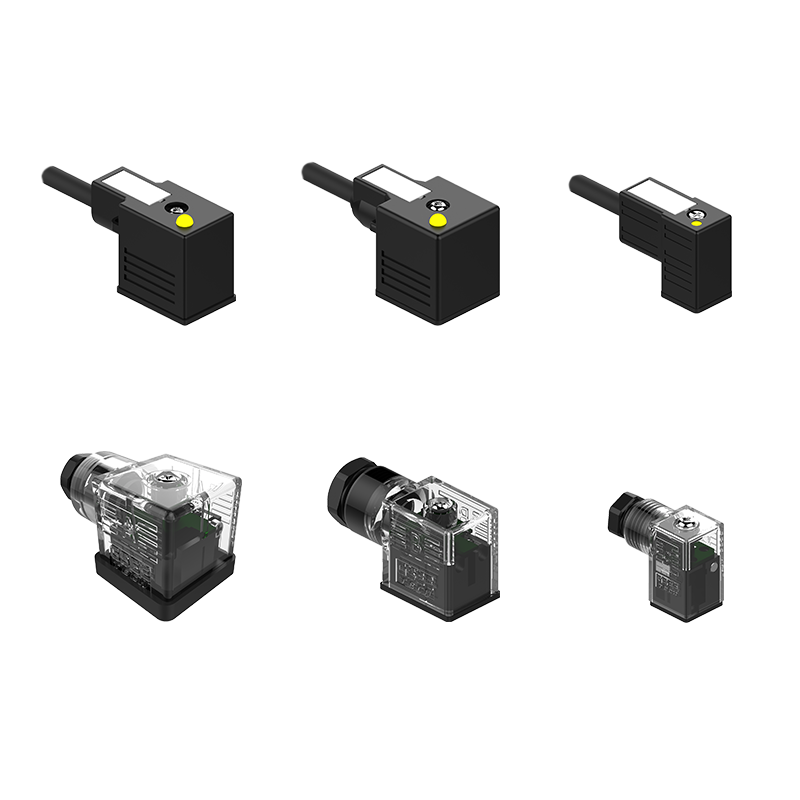

Jinuo Technology's solenoid valve connector can be directly wired or wired on-site. Among them, the A-type, B-type, and C-type solenoid valve connectors are designed according to industrial standards of 2-core+PE and 3-core+PE, with protective circuits and status indicator lights. They are widely used in hydraulic and pneumatic systems, automatic control systems, and industrial manufacturing fields.

Jinnuo Technology's branch products are highly favored and praised by customers for their compact appearance, flexible and versatile appearance styles, as well as unique wiring and installation fixing methods. The product has M8 and M12 standard forms, and customers can choose different internal circuits (parallel/differential) and external interface forms (direct output/nut/connector) according to the installation requirements on site. In addition to the standard form, other outlet forms and connector specifications can also be customized to achieve a one in, multiple out approach.

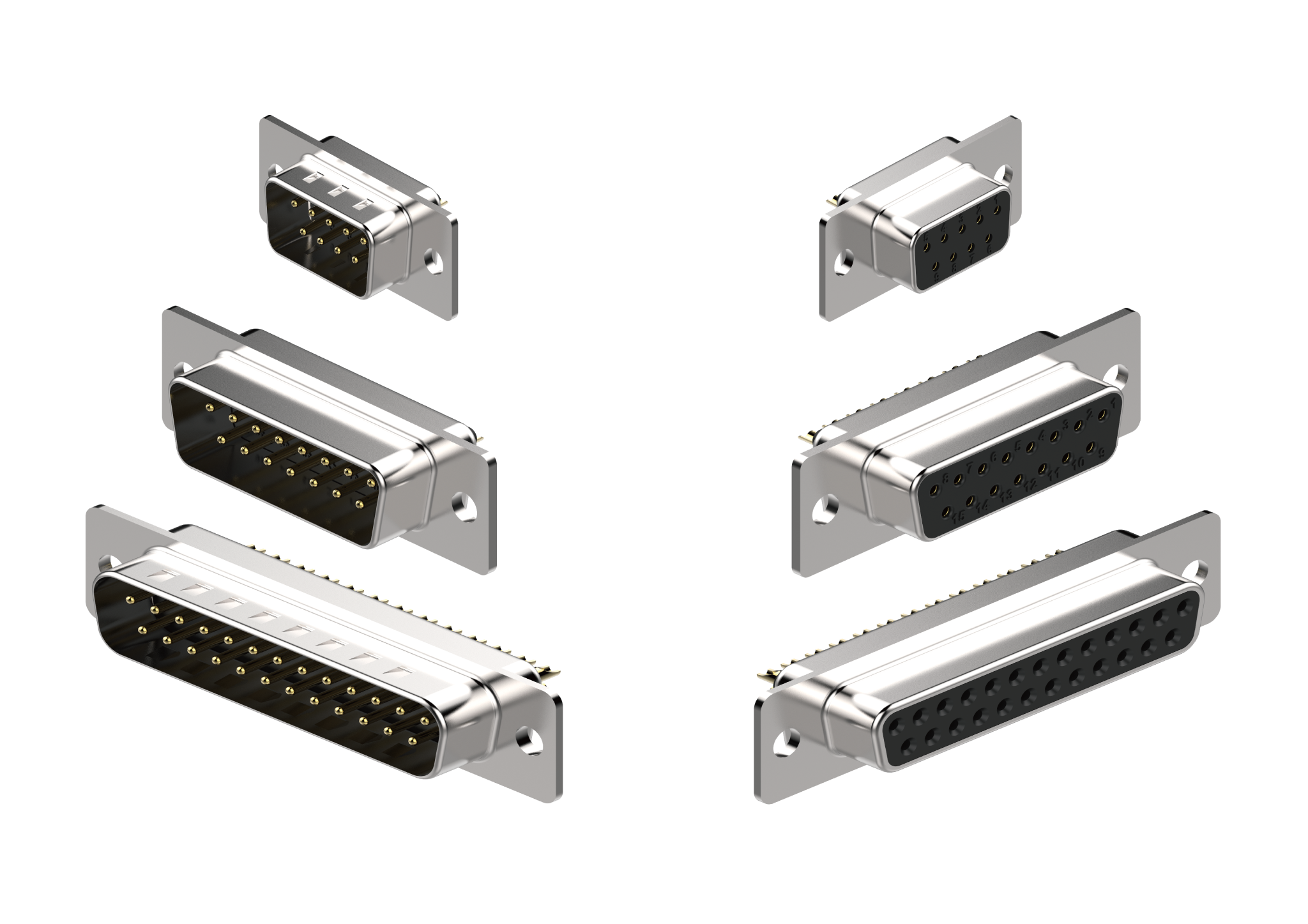

The D-type connector is an indispensable product in the fields of modern communication and automatic control. Gino Technology's D-SUB products are widely used in various electronic devices and communication systems. This product comes in multiple specifications, including standard density types (9-pin, 15 pin, 25 pin, 37 pin, 50 pin) and high-density types (915 pin, 26 pin, 44 pin, 62 pin, and 78 pin), which can be matched with both metal fully shielded and non-metal materials to meet the needs of different scenarios. In addition, pre cast and integrated D-type connector products have further optimized their on-site applications.

The diverse range of communication connectors has been a consistent commitment of Gino Technology, with interface forms including M8, M12 (supporting multiple code systems such as A-Code, B-Code, D-Code, X-Code, etc.), RJ45, etc. Pre cast wiring or on-site wiring can be selected according to application needs. This product series covers almost all types of industrial protocols, such as PROFINET EtherNet/IP、EtherCAT、Modbus TCP、PROFIBUS DP、CANopen、DeviceNet、CC-Link、USB、RS232/RS485 Wait.

Jinuo Technology is dedicated to researching accessories that can adapt to different connectors, carefully creating various accessory materials with complete models and wide applications to meet the extremely demanding conditions and requirements of various customers to the greatest extent possible.
